AHD Rear Camera For Ford Transit Custom 2012-2015 Van Backup Camera

Carleader AHD Rear Camera For Ford Transit Custom 2012-2015 Van Backup Camera , which is designed to replace the original third brake light position and provide rear monitoring capability. Compared with traditional external backup cameras, this integrated design maintains the original vehicle appearance and offers a cleaner installation solution. The camera supports CVBS/720P/1080P optional video output and provides clear rear images for reversing, parking and low-speed driving. Equipped with 10pcs IR LEDs, IP69K waterproof protection and 4PIN Aviation Connector with RCA Adapter, this Van Backup Camera delivers stable performance in different weather conditions.

Features:

1. Third Brake Light Camera provides an integrated rear monitoring solution without changing the original vehicle appearance.

2. The rear view backup camera supports CVBS/720P/1080P optional video output.

3. 8mm lens with 120°-140° wide viewing angle improves rear visibility and reduces blind spots.

4. 4PIN Aviation Connector with RCA Adapter ensures stable connection and easy installation.

5. IP69K waterproof protection supports harsh outdoor commercial vehicle environments.

Suitable Model: Ford Transit Custom(2012-2015)

Effective Pixels: CVBS / 720P / 1080P Optional

Lens: 2.8mm

Video Input Format: CVBS / 720P / 1080P HD25/30fps PAL/NTSC

View Angle: 120°-140°

Connector: 4PIN Aviation Connector

Power Supply: DC12V (Standard), 24V (Optional)

Minimum Illumination: 0.1Lux (LED ON)

White Balance: Auto

IR LED: 10 pcs

Audio: N/A

Bracket: Without LED Light

IP Rating: IP69K

AHD/CVBS Switch Cutting Line Optional

PAL/NTSC Switch Cutting Line Optional

Product Details & Quality Inspection

1. Product Details Display

Recommended product images:

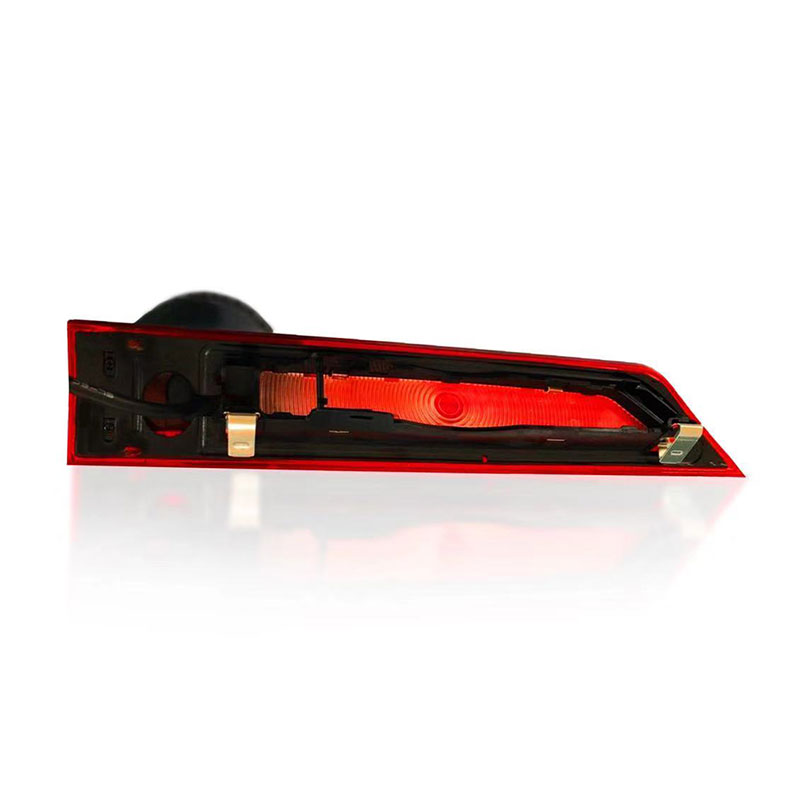

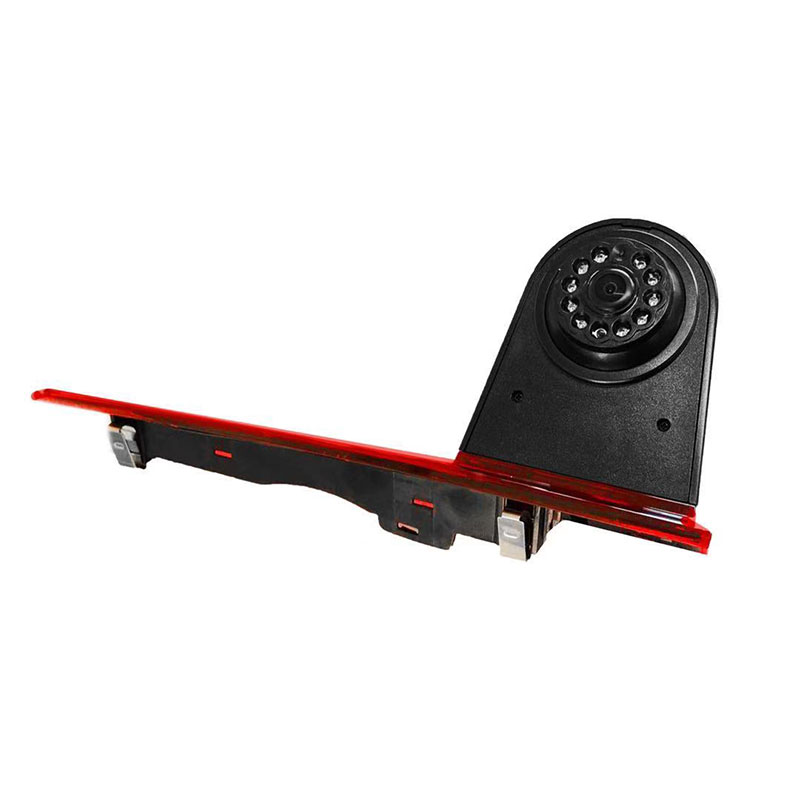

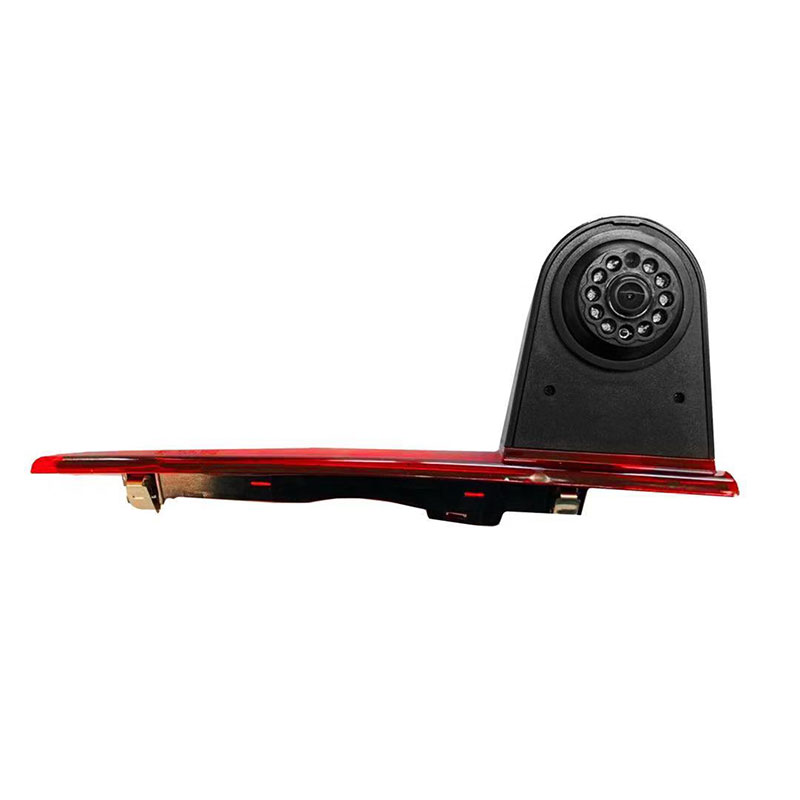

• Front view of brake light camera
• Rear side connector display
• Camera lens close-up
• Installation position on vehicle
• Real vehicle installation effect

2. Testing Process

Each Brake Light Camera is tested before shipment:

• Camera image and video signal test
• IR night vision function test
• Waterproof and dust resistance test
• Power supply and connector stability test
• Aging test

FAQ

Q1: Which vehicle does this Brake Light Camera fit?

A: It is designed for Ford Transit Custom Van (2012-2015).

Q2: Does it replace the original brake light?

A: Yes, it is installed in the original third brake light position and provides rear camera functionality.

Q3: Does it support 1080P?

A: Yes, CVBS/720P/1080P optional video output is available.

Q4: Does this camera support night vision?

A: Yes, it features 10pcs IR LEDs and 0.1Lux low illumination performance.

Q5: How is the camera connected?

A:It uses a 4PIN Aviation Connector with RCA Adapter for stable connection and easy installation.
